How Smart Sensors Prevent Dough Sheet Sagging in Multi-Roller Noodle Machines
Precision That Keeps Dough Sheets Moving Smoothly
In multi-roller noodle machines—whether 4, 7, or 8 stages—the dough sheet travels continuously from one roller set to the next. Between rollers, the sheet’s own weight naturally causes it to sag downward. While a slight sag is normal and even helpful for maintaining dough relaxation, excessive sagging can cause serious production issues: the dough may touch the table, fold over, or even tear.
To ensure continuous, stable operation, we integrate infrared sensor systems that automatically detect the dough sheet’s position and adjust roller operation in real time. This smart control design is one of the unseen innovations behind smooth, high-speed noodle production.
1. The Physics Behind Dough Sheet Sagging
As the dough sheet exits one roller and moves toward the next, it stretches under its own weight. Because roller speeds differ slightly to achieve gradual thinning (usually 20–30% per pass), tension varies along the sheet. If the following roller runs slightly faster, the sheet tightens and may tear; if slower, the dough sheet sags too far and risks touching the table.
Maintaining the right balance between gravity, tension, and roller speed is critical for consistent thickness and gluten structure.
2. Why Manual Monitoring Isn’t Enough
In traditional systems, operators visually check the dough sheet height and manually stop the machine if it begins to droop. However, at industrial speeds (hundreds of kilograms per hour), even a 1–2 second delay can cause breakage or production loss.
Manual monitoring also depends heavily on experience, lighting, and reaction time—all human variables that smart sensors can eliminate.
3. Infrared Sensors: Detecting and Controlling Sheet Position

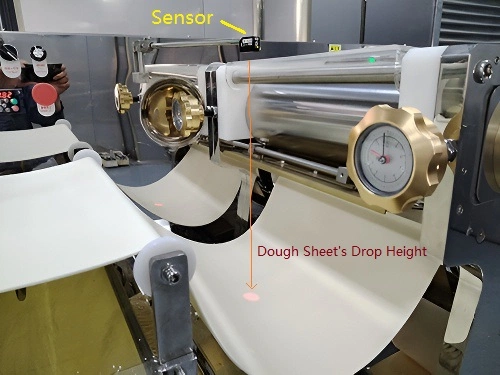

Each roller section in our high-capacity noodle machines is equipped with an infrared distance sensor positioned at the midpoint between rollers.
- The sensor measures the dough sheet’s drop height in real time.
- Two threshold values are pre-set:
- When sagging exceeds the upper limit, the system triggers a signal to pause roller operation.
- When sagging returns below the lower limit, the rollers resume automatically.
This simple yet powerful feedback loop ensures that every section operates in sync—preventing dough sheet contact, folding, or rupture.
4. Synchronizing Multiple Rollers Automatically
Smart control goes beyond individual sensors. The PLC system links all roller motors into one adaptive loop. When any roller slows down or stops due to sag detection, preceding and following rollers automatically adjust their speed proportionally.
This coordinated deceleration keeps tension consistent across the sheet, allowing continuous production even during minor disturbances.
5. Benefits: From Operator Safety to Consistent Quality
- Prevent dough sheet breakage — ensuring uninterrupted production.
- Avoid contamination — no contact between dough and table surface.
- Reduce operator workload — no need for constant visual monitoring.
- Improve sheet uniformity — stable roller synchronization preserves gluten texture.
Combined, these improvements lead to higher uptime, fewer rejects, and smoother transitions between production batches.
6. Engineering for Real Production Needs
Many clients initially struggle with dough tearing or inconsistent sheet feeding when scaling up from small-batch to industrial production.
Our approach is not only to build heavier machines but also to engineer smarter control systems that address real-world operator pain points.
This infrared control concept is now standard on our multi-stage noodle and pasta production lines↗, and can be retrofitted on existing systems.
7. Conclusion
The success of industrial noodle production is not just about strong rollers or large mixers—it’s about maintaining balance and precision throughout the entire dough journey. Smart sensor integration ensures that the dough sheet behaves predictably, protecting both product quality and production efficiency.
