Matching 100kg/h Capacity with a 3-Stage Rolling Machine: An Engineering Guide

Introduction

For noodle manufacturers targeting a 100kg/h to 125kg/h output, the challenge is not just speed, but the internal physics of the dough. At NoodleMachinePro, we believe a 3-Stage Industrial Noodle Line can produce the same artisan quality as a massive 8-stage line—provided you follow the correct engineering logic.

The secret lies in mimicking the large-scale industrial process through a Multi-Pass Reduction Strategy. Here is how to optimize a 100 kg/h workflow for maximum texture and gluten integrity.

1. The Core Workflow: Efficiency Meets Gluten Integrity

Our R-C-R logic workflow can also be applied to this 3-stage noodle production line.

Step 1: Conventional Mixing & Artisan Hydration

• Equipment: Conventional Dough Mixer single wolf-teeth shaft  (50 kg capacity per batch).
• The Logic: For 100kg/h production of Ramen or fresh noodles, we avoid vacuum systems to preserve the traditional mouthfeel. Conventional mixing allows for a more “porous” and layered hydration.
• Batch Rotation: After mixing, dough is discharged into three parallel containers for the First Resting (R1). This 3-container system is essential for maintaining a continuous 100kg/h flow without rushing the protein development.

👉 Also read Why Noodle Machines Use Wolf-Tooth Dough Mixers?

Step 2: Lamination (The First Roller Set)

• The Process: Dough particles are compressed and subjected to Closed-Loop Lamination. This folds and weaves the protein into a dozens-of-layers composite sheet.

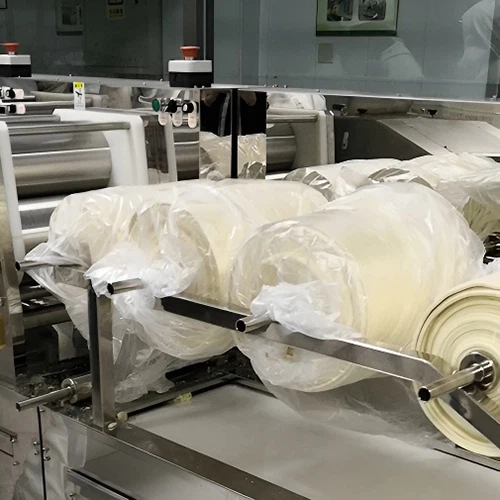

• The R2 Phase (Second Rest): After lamination, the dough coils are rested again. This Stress Relaxation is critical; it prevents the dough from snapping during thinning.

👉Also read Why Dough Resting Matters in Noodle Making

Step 3: The Quality Pivot—Multiple Passes on the Second Roller

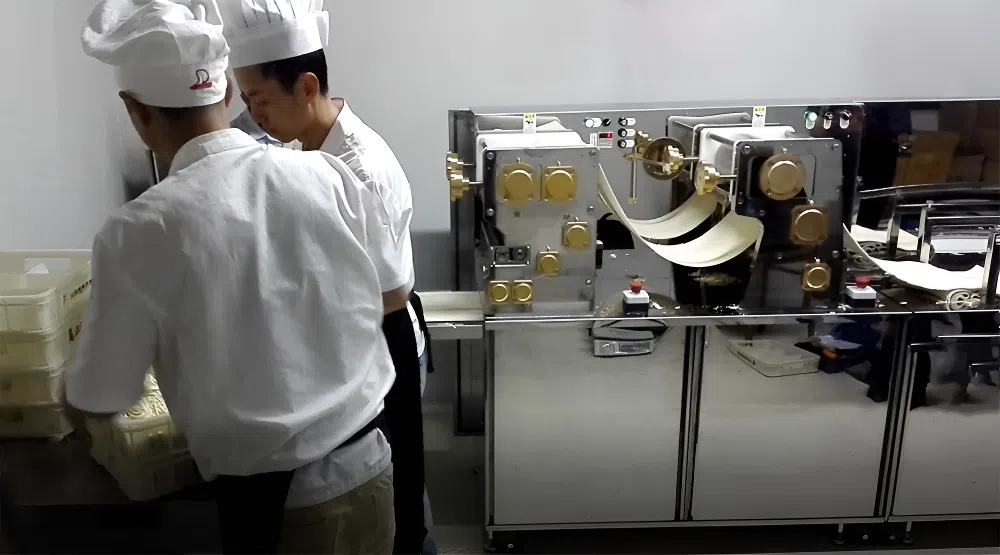

To achieve the quality of a 7-stage or 8-stage machine on a 3-stage setup, we strongly recommend reusing the second roller set for multiple reduction passes.

• Why this is mandatory: Large industrial lines have 7 or 8 sets of rollers to thin the dough belt gradually. In a 3-stage line, if you thin the dough too quickly in one pass, you will tear the Gluten Network.
• The 30% Rule: You must pass the dough through the second rollers multiple times, reducing the thickness by no more than 30% each time. This “weaving” process builds the internal tension required for a premium Al Dente snap.
• The Trade-off: While this adds labor and time, it is the only way to ensure a 100 kg/h line produces a product that competes with high-end factory noodles. Skipping this step leads to brittle, low-quality noodles.

Step 4: Final Thinning, Cutting, and Packaging Scenarios

The third roller set performs the final thinning to the target thickness.

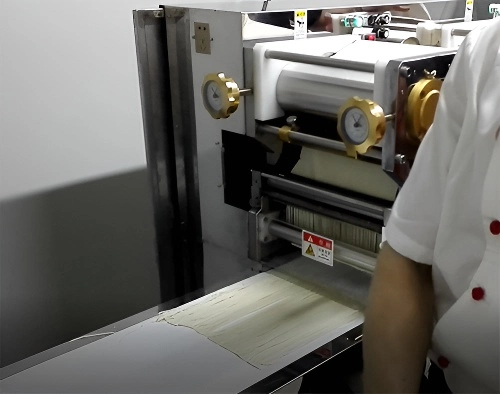

• The Slitting Step: A precision-calibrated Slitter ensures clean, sharp edges—a mark of industrial quality.
• Scenario A: Supermarket Retail: For lines serving retail markets, we integrate a Pillow-Type Packaging Machine directly after the cutter to minimize manual handling and reduce bacterial exposure.
• Scenario B: Restaurant Distribution: For factories supplying local ramen noodle shops or fresh noodle bars, the machine allows for Manual Sorting. Workers can manually portion the fresh noodles into turnover boxes for immediate cold-chain delivery.

2. Technical Comparison: 3-Stage Scaling Options

📌 Let’s Assist You

Artisan Quality at Industrial Scale. You don’t need a 10-meter production line to produce the world’s best noodles. You need the right engineering logic. Our 3-stage systems are designed for processors who refuse to compromise on texture.
