Versatility in Production: Meeting Diverse Noodle Specifications
Introduction
In today’s competitive market, a noodle production line must be capable of more than just high volume; it must offer versatility. Whether your client demands ultra-fine Somen or thick, wide Pappardelle, your equipment’s ability to switch between specifications determines your market reach.
At NoodleMachinePro, our industrial lines are engineered to handle a vast range of shapes and sizes with minimal downtime for changeovers.
1. Thickness Precision: From 0.5mm to 5mm

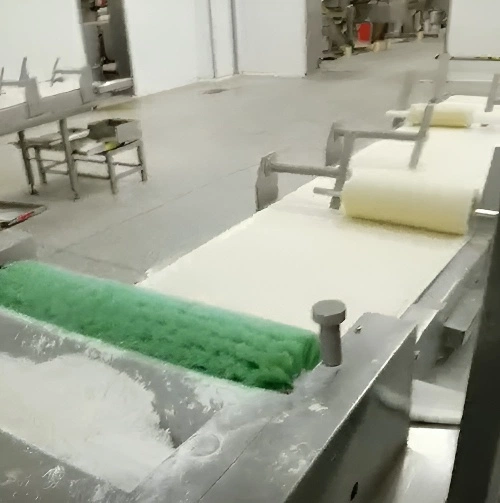

The foundation of noodle size is the dough sheet thickness, controlled by the final stage of the multi-stage roller system.
- Ultra-Thin (0.5mm – 1.0mm): Ideal for Wonton wrappers↗ and fine Vermicelli↗. This requires high-precision stainless steel rollers to prevent tearing.
- Standard (1.2mm – 2.0mm): The “Sweet Spot” for most Ramen↗ and Fresh Noodles↗, Dumpling Skins.
- Thick-Cut (2.5mm – 5.0mm): Used for Udon↗ and certain regional Chinese noodles, for example, knife-cut noodles. Our high-torque motors ensure consistent pressure even at maximum thickness.
2. Width & Shapes: The Role of Precision Slitters
The width of the noodle is determined by the slitter (cutting tool). A professional line should support a quick-change system for various specifications:
- Fine Round (1.0mm – 1.5mm): Achieved through specialized circular cutters.
- Flat & Wide (3.0mm – 15mm+): Perfect for Linguine or “Biang Biang” noodles.
- Knife-Cut Noodles: Our lines can integrate a “non-standard” unit that creates the handmade knife-cut noodles.
Thin Round Noodle
Round Noodle
Knife-Shaved Noodle
Zusheng Noodle
Tagliatelle Fresh Pasta
3. How to Switch Specifications Efficiently
For a high-capacity noodle production line, time is money. Our equipment simplifies size transitions through:
- Handwheel Precision: Calibrated handwheels with digital readouts for roller gap adjustment.
- Modular Slitters: Lightweight, high-strength cutters that can be swapped in under 15 minutes.
Summary: Customizing Your Output
The range of specifications your machine can include is limited only by the tooling. By investing in a multi-stage rolling system↗ and a set of high-quality stainless steel slitters, your factory can pivot from one product type to another, maximizing ROI and responding to consumer trends.
Because of these differences, there is no single “universal” machine configuration. Each production line must be designed to match the specific noodle type, target thickness and width, and desired hourly capacity. The following table provides an overview of typical size ranges and corresponding machine requirements.
Although Chinese fresh noodles, Japanese ramen, udon, Italian fresh pasta, and dumpling/wonton wrappers all belong to sheeted noodle categories, their processing requirements vary significantly. Chinese fresh noodles and ramen can be produced on a similar setup—conventional dough mixer, multi-stage rollers, and cutter. Udon, however, often requires a vacuum dough mixer to handle its higher hydration, while Italian fresh pasta relies on reinforced rollers to work with the harder durum wheat. Dumpling and wonton wrappers involve additional stacking or shaping steps.
| Category | Typical Thickness (mm) | Typical Width / Diameter (mm) | Key Standards | Machine Adjustment Needs |
|---|---|---|---|---|
| Chinese Fresh Noodles | 0.6 – 4.0 | 0.5 – 50 (round/flat) | No national standard | Roller settings + cutters |
| Japanese Ramen Noodles | 0.6 – 3.0 | 1.0 – 3.7 | Fine noodle: 1.0–1.3mm, thick noodles: 2.5–3.0mm) | Roller settings + cutters |
| Udon Noodles | Round | 1.7 – 6.0 | JAS standard: min diameter ≥1.7mm; 4–6mm is classic thick udon | Udon roller set (wider gaps) |
| Traditional Fresh Pasta (Sheeted) | 0.6 – 1.5 | 1.2 – 30 (Tagliolini → Pappardelle) | Traditional sheet-cut; roller hardness + egg/salt dough | Roller hardness ↑ 15–25% for durum |
| Dumpling & Wonton Wrappers | 0.6 – 1.0 | Cut to 60–90mm squares / round discs | No unified size, often workshop-specific | Wrappers via sheet + stacking device |
